Outfall Design and Optimization in CORMIX
CORMIX has several systems available for outfall design and mixing zone optimization. These integrated systems can be used in an iterative fashion to determine regulatory mixing zone compliance. These advanced systems available for documented analysis include the following tools:

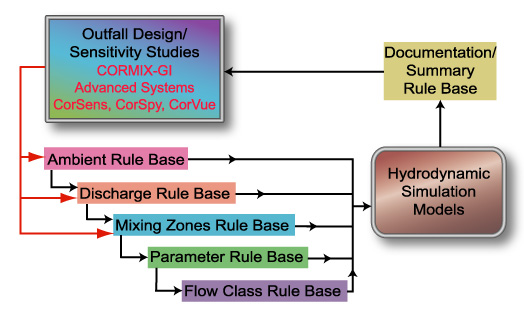

	The CORMIX rule-bases and advanced software tools integrate to form a design and optimization system.
CorSpy: System for outfall design visualization and specification. CorVue: System for visualization of mixing zone properties including toxic dilution zone CMC and CCC values.		CorSens: System for automated sensitivity analysis of regulatory mixing zone compliance. System Documentation: Gives design recommendations for parameters to modify in mixing zone analysis.

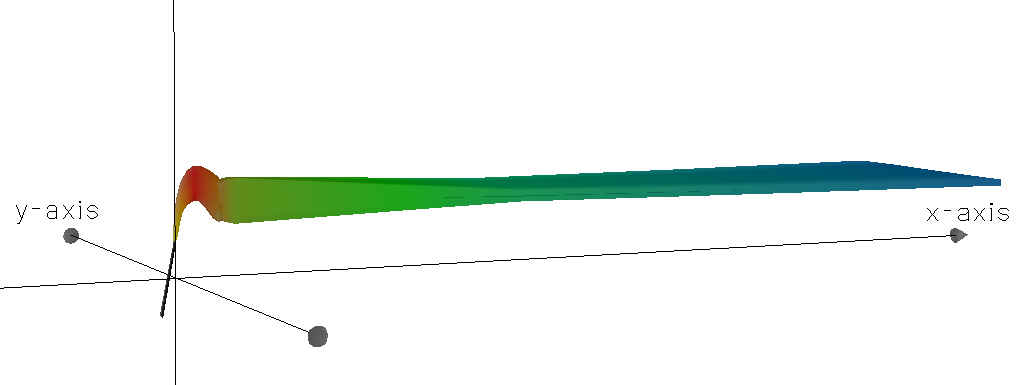

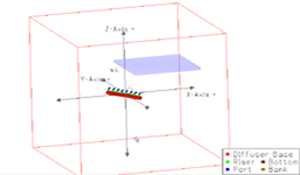

CorSpy 3-D visualization of a unidirectional multiport diffuser and the water surface (larger image).		A CorVue visualization of flow class S1 trapping by a density-stratified crossflow followed by density current far-field mixing. Enhanced image has ambient boundaries, and flow module regions with RMZ and TDZ locations highlighted.
